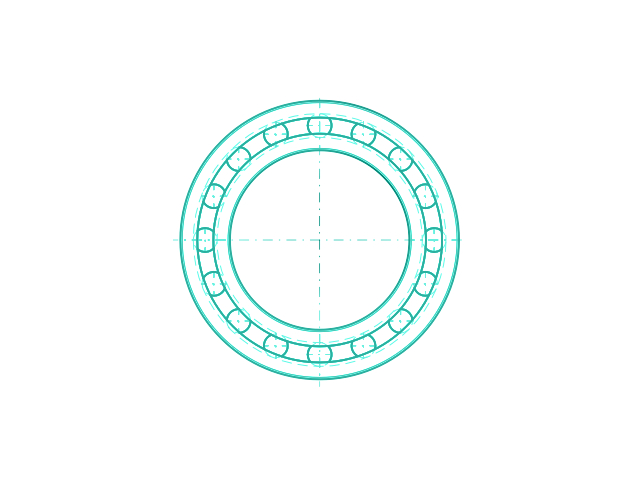

Dimensions
d |
| 180 | mm |
D |
| 280 | mm |
B |
| 31 | mm |
d1 | ≈ | 213.5 | mm |
D1 | ≈ | 245.8 | mm |
r1,2 | min. | 2 | mm |
Abutment dimensions
da | min. | 189 | mm |
Da | max. | 271 | mm |
ra | max. | 2 | mm |
Calculation data
Basic dynamic load rating | C |
| 138 | kN |
Basic static load rating | C0 |
| 146 | kN |
Fatigue load limit | Pu |
| 4.2 | kN |
Reference speed |
|
| 4800 | r/min |
Limiting speed |
|
| 3000 | r/min |
Calculation factor | kr |
| 0.02 |
|
Calculation factor | f0 |
| 16.3 |
|
Mass
Mass bearing |
|
| 6.509 | kg |
